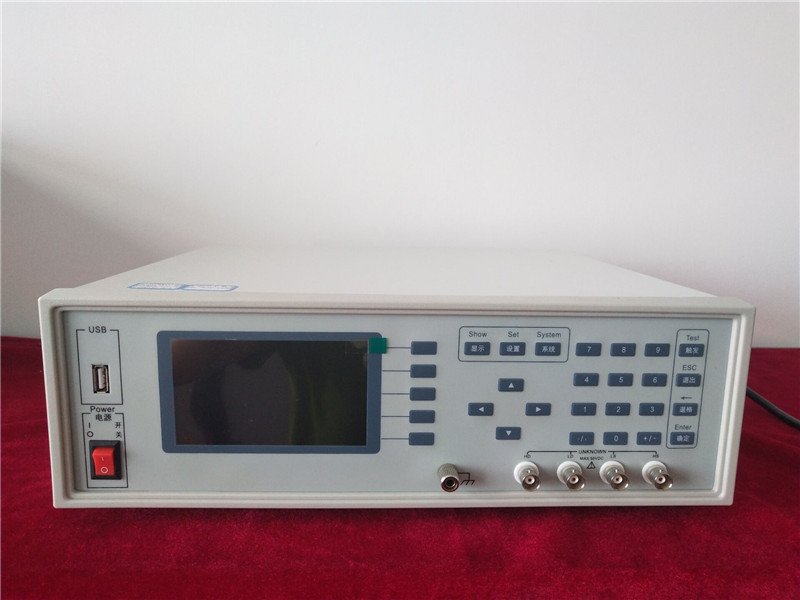

FT-310炭素电阻率测试仪
FT-310 Carbon resistivity tester
一.描述description：
四端测试法测量碳素材料，石墨等块状棒状及粉末材料常温下导电性能。恒流，自动电流档， 4.3吋液晶显示，显示：电流、电压、温度、电阻率，电导率，电阻等数据，选配：PC软件获得测试数据之图谱和报表。根据产品形状不同选购测试治具.
The four terminal test method measures the high conductivity performance of carbon materials, graphite and other block-like rods and powder materials Under the normal temperature.High precision constant current. constant voltage source. Automatic current gear. 4.3 inch LCD to display: current. voltage. temperature. resistivity. Conductivity and resistance datas. Optional to buy :PC software receives the test data chart and report. choose to buy test jigs according to the shape of the product.
二.适用范围Scope of application：
适用于碳素厂、焦化厂、石化厂、粉末冶金厂、高等院校、科研部门对材料之研究.
Suitable for carbon plant. coking plant. petrochemical plant. powder metallurgy factory. colleges and universities. scientific research department of new material research.
三.参照标准standard：
铝用炭素材料检测方法 第2部分 阴极炭块和预焙阳极室温电阻率的测定 GB/T6717、GB/T 24525-2009、YS/T63.2炭素材料电阻率测定方法.；ISO 11713-2000、YS/T63.2-2005和YS/T 64-1993标准方法测试阴极炭块、预焙阳极、阳极糊阴极糊和炭素制品常温下的电阻率。
aluminum carbon material detection method part 2 The resistivity measureming of Cathode carbon blocks and pre-baked anode under room temperature.GB/T6717. GB/T 24525-2009. YS/T63.2 carbon material resistivity method. At the same time meet the ISO 11713-2000. YS/T63.2-2005 and YS/T 64-1993 standard test method to test the resistivity of cathode carbon block. pre-baked anode and the anode paste cathode paste and carbon product under room temperature.
炭素材料制品的电阻率值是评价炭制品电极质量，也是在炭制品加工中控制监督工艺过程的重要参数。
The resistivity value of the carbon materials products is one of the important physical indexes to evaluate the quality of electrode to Determine thep roducts's grade . It is also an important parameter to control the process of monitoring process in carbon processing.
测量电阻灵敏度达0.01μΩ. ，测试电流能达到10A
Measurement resistance sensitivity of 0.01μΩ. test current can achieve 10A
四.参数资料/ index
1.电压/ voltage：量程/ range： 2mV.20mV. 200mV.2V
分辨率/resolution： 0.1uV，1uV，10uV，100uV
量程误差：2mV 档: 0.1%读数+ 6个字 / range: 2mV. accuracy: 0.1%
20mV. 200mV. 2V档： 0.1%读数+ 2字 /range:20mV. 200mV. 2V. accuracy： 0.1%
2 直流恒流源/ DC constant current source： 输出/ output： 100uA.1mA.10mA.100mA.1A.10A.
误差Range： 100uA.1mA.10mA.100mA：accuracy 0.1%；
Range:1A，10A accuracy： 0.15%
3.测量范围：炭素长度：1.6m—2m;炭素直径：100mm—600mm
电阻率：2×10-8—20kΩ·cm;电阻：0.01μΩ—20kΩ；
Measuring range: carbon materials length 1.6m—2m. carbon materials diameter 100mm—600mm.
resistivity：2×10-8—20kΩ·cm; resistance：0.01μΩ—20kΩ；
4.电阻分辩率/ resolution：0.01μΩ
5.显示：4.3寸液晶屏、直读电阻值、电阻率、电导率、温度、电流、电压等数据
Display: 4.3 inch LCD display. direct reading resistance. resistivity. conductivity. temperature. current. voltage and other data.
6.电源交流/ AC power 220±10% 50HZ/ 60HZ
