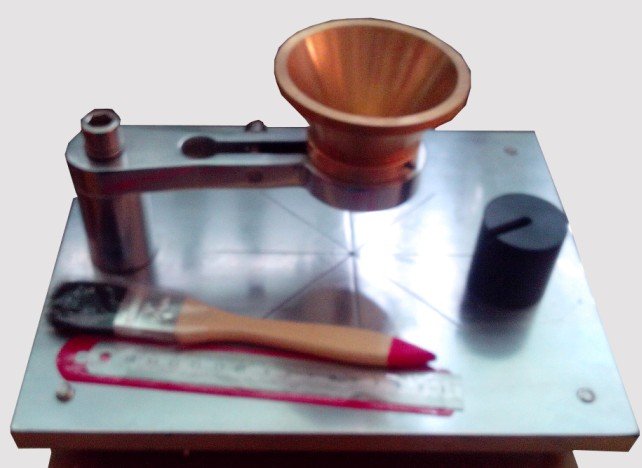

氧化铝/氟化铝安息角测定仪详细解析
参数资料
不锈钢漏斗：上内径74mm、下料口内径6mm两档板间装有孔径为1mm的筛网。此漏斗被紧固在支架上。
SS funnel: upper inner diameter 74mm, feed opening inner diameter 6mm,
between the two baffle plates with 1mm sieve. The funnel is fastened on the bracket.
电镀钢底板：底板由钢制成材料制成，尺寸为：宽200mm、长270mm、厚18mm。在抛光电镀的底板上表面上刻有四条互成45︒角的直线。正好在漏斗处的中心部分有1个固定高度量规的定位销，底板下面有可调水平的支脚。
Electroplated steel bottom plate: The bottom plate is made of steel, minimum size: width 200mm, length 270mm, thick 18mm. On the surface of polished electroplated steel bottom plate carved four straight lines with 45 degree angles each other. There are 1 position pin for fixed height gauge in the center part of the funnel, the bottom plate is provided with adjustable feet.
漏斗固定器:由不锈钢组成，其结构应紧固。漏斗中心线垂直于中心定位销。
Funnel holder: made of stainless steel, the structure should be fastened.
Funnel center line perpendicular to center position pin.
高度量规（决定高度的金属圆柱体）：它是表面抛光的由不锈钢制成的圆柱体，高40mm，底部有一凹槽，以便同底板的定位销中心相衔接。
Height gauge(Metal cylinder for determine the height): it is a polished stainless steel cylinder, height 40mm, a groove at the bottom, so as to connect with the positioning pin center of the bottom plate.
重量Weight：约16kg
氧化铝/氟化铝安息角测定仪详细解析
一．参照标准standard：
GB/T6609.24-2004《氧化铝化学分析方法和物理性能测定方法：安息角的测定》。
It was designed and manufactured according to the national standard GB/T6609.24-2004 "the method of chemical analysis of alumina oxide and the method of physical performance measurement: "determination of repose angle ".
YS/T581.13氧化铝化学分析方法和物理性能测定方法 安息角的测定》。
