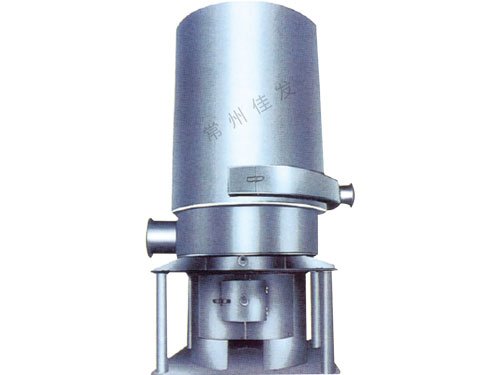

JRF燃煤热风炉
详细信息
应用概述 General of applications
★该炉为通用性热风加热装置，与各种物料的干燥设备配套使用。
★该炉集燃烧与换热为一体，以炉体高温部位进行换热的**间接加热技术。采取了耐高温措施，从而使其寿命比管式热风炉大大提高，输出热风温度可达300℃以上，同时采用了烟气逆向刷新换热片和负压吸式排烟方式，换热部位不积灰、无须清理，热性能稳定。可使用各种煤或木柴做燃料，并配有二次进风装置，燃烧完全。各项技术指标均达国内**。
★The furnace is universal hot air heating device and can be equipped with all kinds of drying equipment.
★The furnace integrates combustions and heat exchange in one body and adopts the newest indirect heating technique with high temperature of furnace body to carry out heat exchange and adopts measures of high temperature resistant too. Compared with pipe type hot air furnace, its life is raised greatly. The temperature of hot air to be transmitted may reach over 300℃.Meanwhile it adopts heat exchange sheet of conversed smoke and air and smoke exhausted way of negative pressure. So the part of heat exchange does not accumulate dust and not necessary to clean and the thermal property is constant. It can use different coal or as fuel. Because of equipped with secondary air in device, the combustion is fully.All technical indexes reach to domestic advanced level.
项目ltem 规格Specification | 输出热量(104kcal/h) Heat capacity of output heat | 输出风量(m3/h) Air volume of output | 热风温度(℃) T of hot air | 耗煤量(kg/h) Consumption of coal | 烟气引风机型号 Model of exhaust smoke fan |
JRF4-2.5 | 2.5-3 | 560-1500 | 60-200 | 10-12 | 炊事用鼓风机80-100W Blast fan for cooking 800-100W |
JRF4-4 | 4-5 | 930-3500 | 60-200 | 14-17 | 炊事用鼓风机200-300W Blast fan for cooking 800-100W |
JRF5-8 | 6-8 | 1480-5600 | 60-200 | 18-24 | Y5-47 2.8c 1.1Kw |
JRF5-15 | 10-15 | 2160-12000 | 60-300 | 30-45 | Y5-47 4c 2.2Kw |
JRF5-30 | 25-30 | 4330-25000 | 60-300 | 70-85 | Y5-47 4c 3Kw |
JRF5-60 | 55-60 | 8660-45000 | 60-300 | 150-175 | Y5-47 4c 5.5Kw |
JRF5-80 | 75-90 | 12500-83000 | 60-300 | 180-220 | GY2-1 11w |
JRF5-100 | 80-100 | 14400-84000 | 60-300 | 220-290 | GY2-1 11kw |
JRF5-160 | 120-160 | 23000-134000 | 60-300 | 410-460 | Y9-26 9D 18.5Kw |
所有参数仅作参考，视物料情况，本公司拥有变更权利，并不另行通知。
All datas are used for reference only. According to the condition of material, our factory has the right to change but not notice, pardon!
